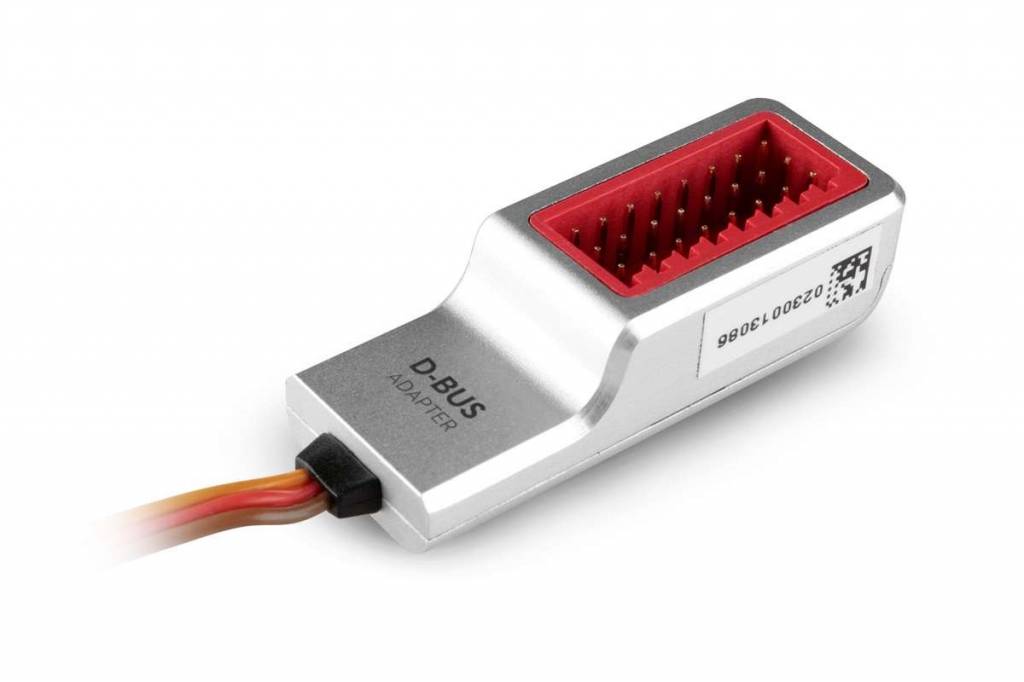

DJI D-Bus Adapter for A2 Flight Controller
The DJI D-BUS ADAPTER module can provide eight-way input or output for the A2 Multirotor Flight Controller. A traditional receiver can be used through this module, or can be used to extend the output ports. Please refer to the A2 user manual D-BUS ADAPTER section for more specific details of functionality. When using a traditional D-BUS receiver with the A2, the DJI D-BUS Adapter is required.
D-BUS Adapter Setup:
- Put the switch to the “I” stop, and power on the system. The LED should be on red; otherwise keep the switch at the “I” stop and then power cycle the system.
- At the “I” stop, the D-BUS Adapter is converting the PWM signal from traditional receiver to S-BUS signal.
