DJI E300 Tuned Propulsion System for Multirotors (6 sets pack)
9.4*4.3 ” Rotor
Representing the state of the art in this industry, the 9.4*4.3“ rotor offers an approx. 20% ~ 25% improvement over the 8.0*4.5” rotor without the need of using a heavier motor, making the 350 ~ 450 model quad copter achieve a significantly higher lift and thus more powerful to carry a camera and gimbal setup (FPV). The rotors are carefully balanced dynamically, you will never be bothered by jello effect from your airborne rolling shutter camera. The low inertial design enables your flight controller to use a much higher gain value to achieve a higher stability and maneuverability all at once.
The industry leaders for multi-rotors, these motors have been used worldwide for years in a variety of scenarios with proven reliability.
From magnets to steel, from copper wire to bearing we only use the best materials to make the best products. Improved mass production techniques, along with our scientific quality control systems, lowers costs and ensures that our products are more accessible to users. Our new self-tightening mechanism dramatically reduces any chance of loosening rotor or mistakenly installed rotors. Tool-free mounting and dismounting makes storage and transportation much easier.
This new and improved ESC along with new highly efficient and quick response algorithms, combine to provide drastic optimization of both motor and rotor parameters, all come together to enhance this propulsion system to utilize an agile thrust which gives the aircraft extra maneuverability and stability in wind and during descending. Also feature an electromagnetic compatibility design with a coaxial-cable, which work together to provide a calm electromagnetic environment for the airborne sensors.
|Recommended Load||300 g/axis||600 g/axis|
|Maximum Thrust||600 g/axis||1600 g/axis|
|Working Temperature||-5 °C ~ 40 °C||-5 °C ~ 40 °C|
|Recommended Battery||3S LiPo||6S LiPo|
|Units Per Package||Quad or Hexa||Quad or Hexa|
|Current||15 A OPTO||20 A OPTO|
|Signal Frequency||30 Hz~450 Hz||30 Hz~450 Hz|
|Voltage||11.1 V~14.8 V||14.8 V~25.2 V|
|Battery||3S~4S LiPo||4S~6S LiPo|
|Stator Size||22×12 mm||35×8 mm|
|KV||920 rpm/V||415 rpm/V|
|Weight||50 g||90 g|
|Diameter /Thread Pitch||24×11 cm 9.4×4.3 inch||33×11 cm 12×4.2 inch|

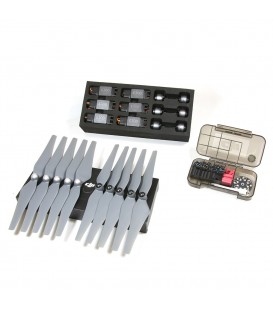

- 2212/920KV brushless motors x 6
- 15A OPTO ESC x 6
- 9.4x4.3" balanced propellers x 5 pairs
- Power Hub x 1
- Accessories pack (Screws ( M2.5*Φ5*1.3*1) , Screws ( M3*Φ4.9*6.8), Screws ( M3*Φ5.5*4.5) Wrench for propeller fix, 2.0mm hexagonal wrench, Double side tape, etc)
